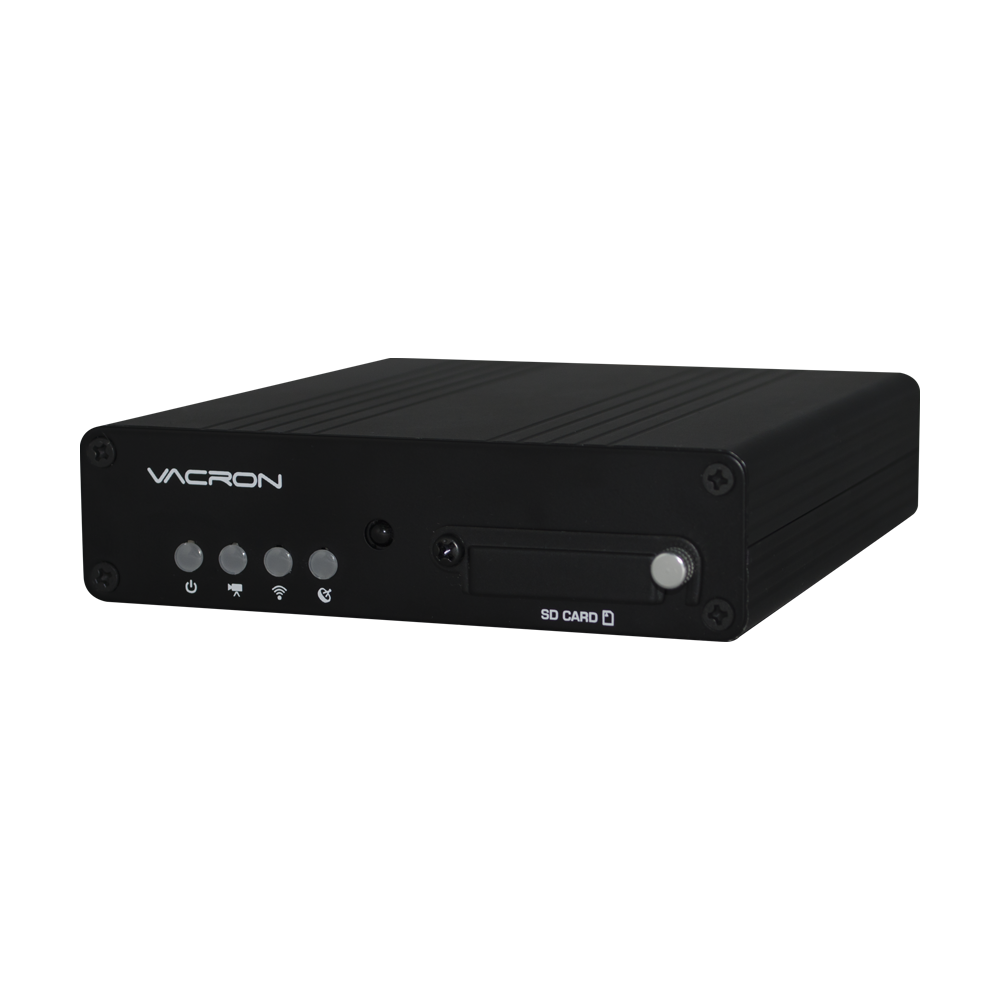

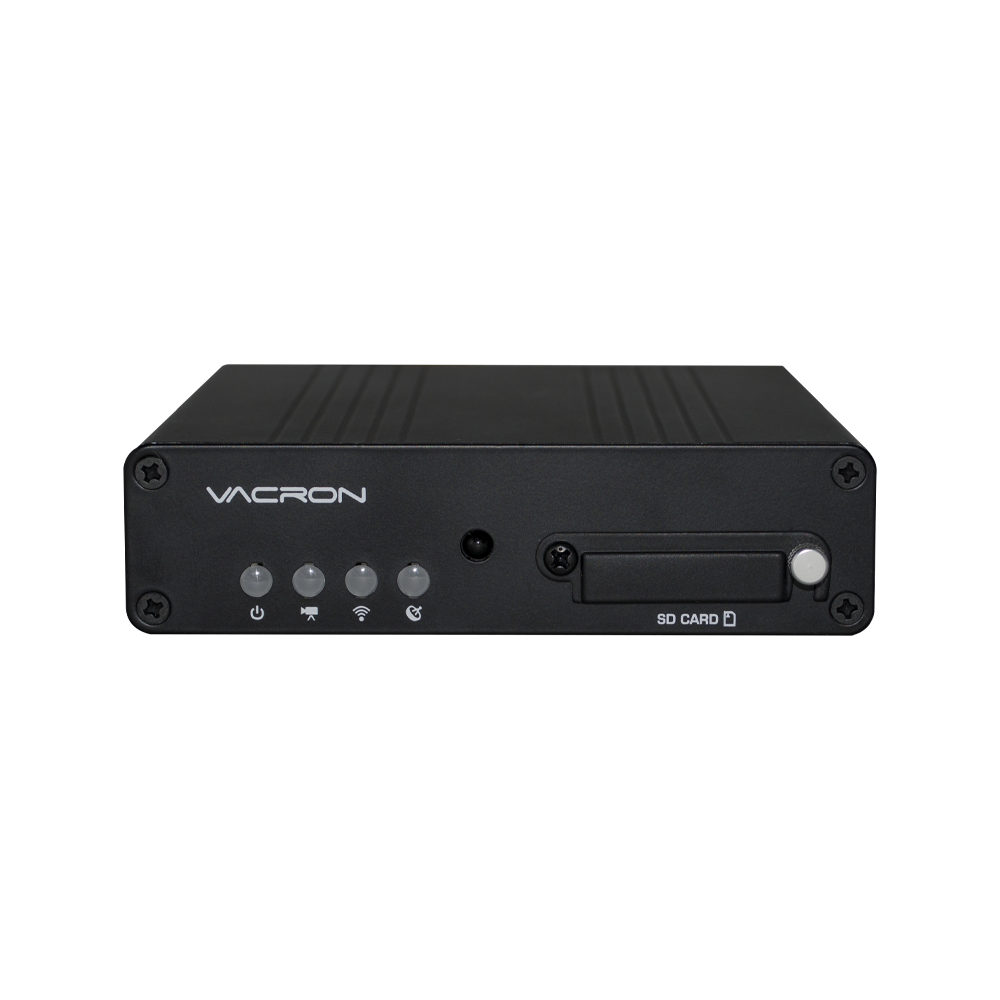

Vacron Mobile DVR VVH-MDE52/AVM-1276
Vacron Mobile DVR VVH-MDE52/AVM-1276 - Image 2
Vacron Mobile DVR VVH-MDE52/AVM-1276 - Image 3
Vacron Mobile DVR VVH-MDE52/AVM-1276 - Image 4

Vacron Mobile DVR VVH-MDE52/AVM-1276

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

£385.00

Product total

Options total

Grand total

Category:
Guaranteed Safe Checkout

Product Features

  • Mobile DVR with 4CH 360° surrounding view cameras. Additional option is the 1CH Parking assist camera, which can automatically change rear image during parking.
  • Video output can connect with external monitor, watch and playback by PC player.
  • Recording format：1080P, 25/30FPS.
  • GUI Graphical control interface
  • Built-in Supercapacitors, automatic keeping recoding after turn off engine, ensure recoding files write back to SD card.
  • Integral and reliable event record table, make recording files easy to search and find.
  • Integral Time and date record, which can display and play by monitor.
  • After insert SD card, do not require any action, the device will start recoding automatically.
  • The video record files save by SD card, against shock and vibration during drive.
  • Built-in Internal 3D G-Sensor, device activates G-sensor during happening event.
  • GPS offer vehicle’s speed, direction, and route track records. (optoinal)
  • Can watch and backup video records by connect with external USB WiFi dongle. (optoinal)



Spec.
Terms Specification
Video Input 4CH 1080P 360°surround view camera 1CH parking assist camera (optional)
Resolution 1080p 360°surround view cameras：CH1(Front)+CH2(Right)+CH4(Left)+CH3(Rear), auto activate parking assist image. Default recording: ch 25/30 fps.
Power 1.DC12V, Max power approx. 1.25A. 2. DC12V, ACC OFF, power approx.30mA. 3. Working Voltage : DC8.0v ~ DC32.0v. 4. Activate Voltage>DC11v.
Delay Record function 1. ACC OFF, delay power support for approx.3 sec. 2. Built-in supercapacitors delay recording time approx.3sec, and then write buffer record data back to SD card.
Temperature Operation Temperature：-20℃～60℃ (Non-confined spaces with natural ventilation) Storage Temperature：-40℃～85℃
Storage SanDisk class10 and 8G above SDHC card. Some specific devices require the vendor recognizes SD card
Recording Automatic recording after activate device in 30sec.
Recording Contents Image, Data, Audio, GPS info (optional). External trigger signal and G-sensor data.
Storage Format Using specific file format, require dedicated player Directly playback on the device.
Audio Input Using specific signal format, require dedicated play monitor
Time setting (a)Auto GPS adjustment, active calendar clock when device cannot receive GPS signal. (b)The first time device installment requires use GPS time adjustment. After finished the adjustment, RTC time will support by vehicle power. The time has to reset if device power off.
Display TV-Out Video output AV-Out Audio output.(AV terminal)
Dimension 115mm x 132.7mm x 30mm (Width x Depth x Length)
Weight 0.4kg (Include SD Card)
Signal Type NTSC / PAL
Sensor / AVM-1276 1/4 inch CMOS *4PCS
Video processor Digital signal manage system
Pixel / AVM-1276 1280 x 720
Total pixel Approx. 1.0 million
Resolution / AVM-1276 720P
Input voltage / AVM-1276 DC 12 ± 1V
Current / AVM-1276 280mA(IR OFF) / 340 mA(IR ON)
Viewing angle / AVM-1276 H : 360° V : 70°
IR range / AVM-1276 1m
